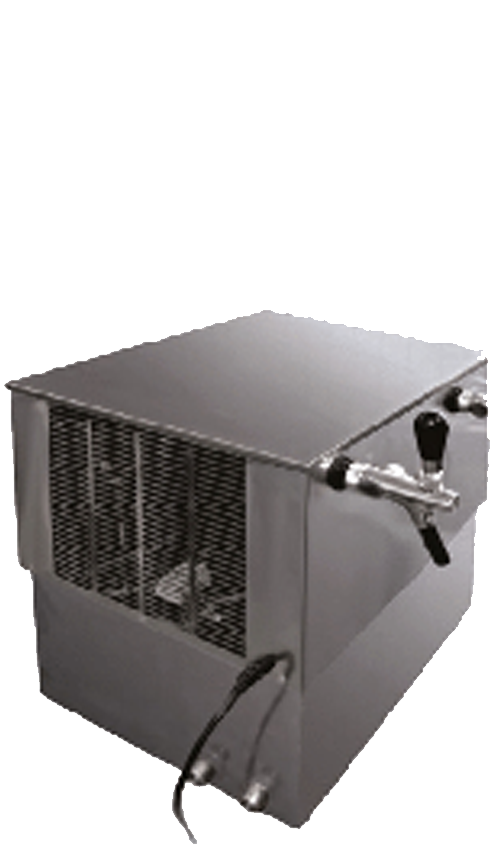

Dry Coolers
| TECHNICAL SPECIFICATIONS | SPUTNIK 1/8K |
SPUTNIK 1/6 |
SPUTNIK 1/6K |
SPUTNIK 1/4 |
SPUTNIK 3/8K |
SPUTNIK 1/2 |
SPUTNIK 3/4K |
B 70i |
|---|---|---|---|---|---|---|---|---|
| Nominal voltage, V | 220(115) | 220(115) | 220( 11 5) | 220(115) | 220 | 220(115) | 220 | 220 |
| Frequency, Hz | 50 (60) | 50 (60) | 50 (60) | 50 (60) | 50 | 50 (60) | 50 | 60 |
| Energy consumption, Watt | 270 | 205 | 396 | 305 | 530 | 560 | 550 | 800 |
| Cooler capacity, l/h | 25 | 35 | 35 | 50 | 70 | 100 | 115 | 70 |
| Pull-down time at the ambient temperature of 24°C, min |
7 | 8 | 8 | 15 | 15 | 17 | 18 | 15 |
| Net weight, kg | 17,6 | 26 | 26,4 | 48 | 65,5 | 60 | 72 | 68 |
| Dimensions(unpacked), mm width Length Height |
165 284 334 |
350 300 450 |
213 410 390 |
380 450 425 |
360 405(503) 533 |
630 465 510 |
360 405(503) 533 |
720 435 600 |
| Product outlet temperature, °C | 10 | 10 | 10 | 10 | 10 | 10 | 10 | -1 |
| Refrigerant | R290 | R290 | R290 | R290 | R290 | R290 | R290 | R134a |
| Compressor, HP | 1/8 | 1/6 | 1/6 | 1/4 | 3/8 | 1/2 | 3/4 | 3/4 |
